CLEARVIEW POLYCARBONATE ROLLER SHUTTER

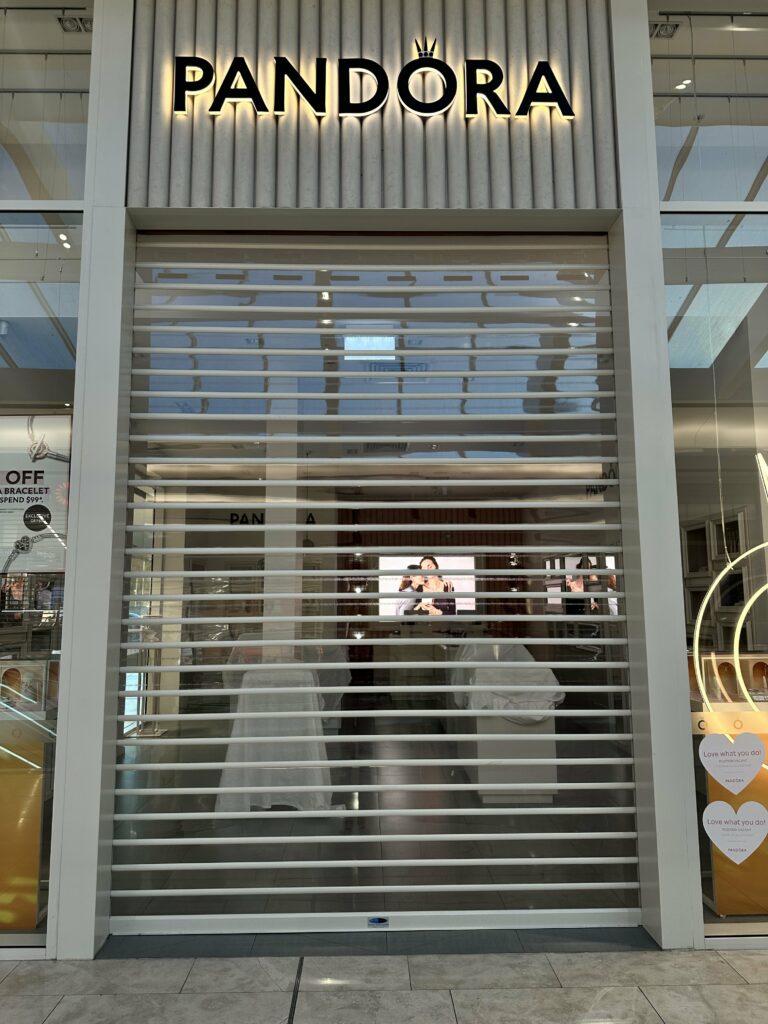

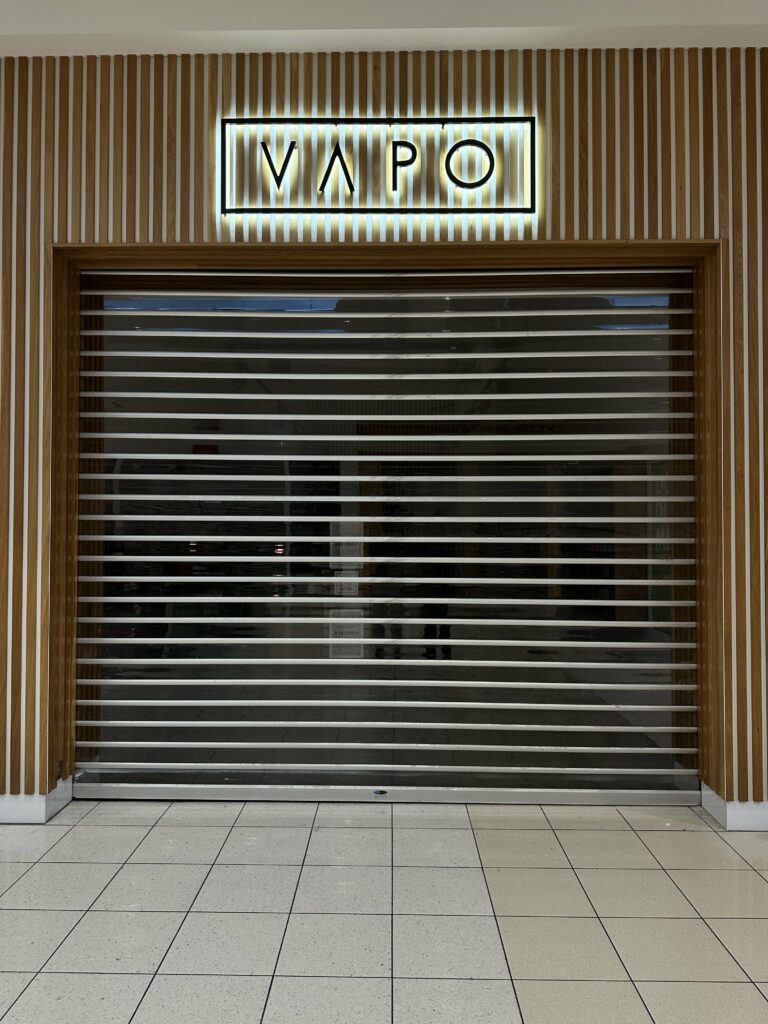

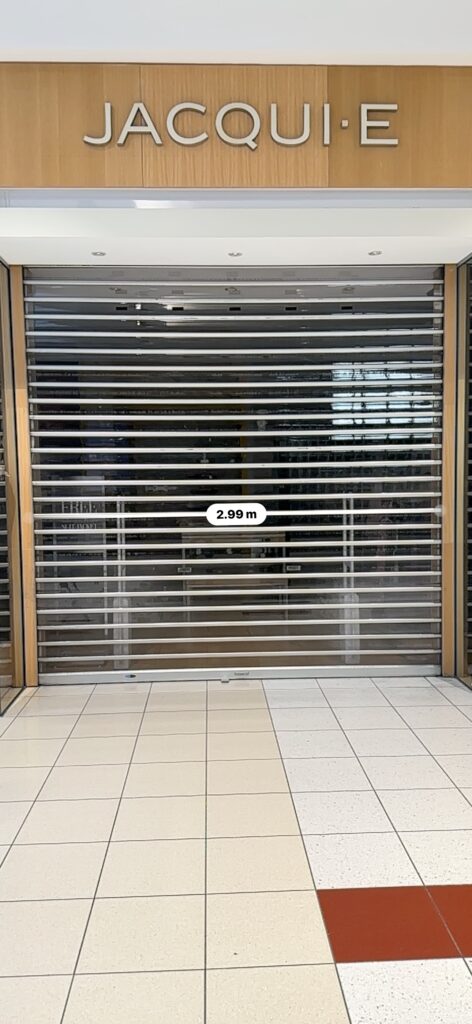

The Clearview Roller Shutter is a strong, resistant, and aesthetically pleasing solution designed for various applications, including shopfronts, shopping centers, and countertops. With its unique “see-through” design, it allows maximum vision and light while ensuring reliable security and protection against unauthorized access.

Technical Specifications

MAXIMUM WIDTH: 3500mm (Manual) | 5000mm (Motorised)

MAXIMUM  HEIGHT: 3000mm (Manual) | 4000mm (Motorised)

APPROX. WEIGHT PER SQM: 15 kgs. per sqm

SLAT HEIGHT: 100mm

SLAT THICKNESS: 1.2mm

BARREL TYPES: 150mm/200mm spiral

BRACKETS: 3mm (Manual) | 6mm (Motorised)

SIDE GUIDES: 50mm deep x 30mm wide (face fixed or heal fixed)

DOOR FINISH: Standard Satin Silver Anodised / Dulux Duralloy Powder Coating

Product Specification Sheet

Download
Product warranty—12 months (Materials and Workmanship)
Scotty Doors Ltd has a continuing programme of product development and reserves the right to alter specifications at any time without notice.

Operation Manual

Download
Door Operation
  • Manual spring-balanced operation
  • Motorised operation (low cycle applications only – not available in high cycle applications) via a single-phase motor / controllers / limit switches, with options for external key switches, remote controls, and UPS battery backup units
Locking (for Manual Operation)
  • Snib Lock (with thumb-turn)
  • Dead Lock (keyed both sides)
Power Requirements (for Motorised Operation)
  • Single-phase outlet (10amp), located within 1 metre of the motor—plug and go setup
Manual spring-balanced
  • Head Room: 400mm
  • Side Room (both sides): 120mm
  • Projection: 400mm
Motorised
  • Head Room: 550mm
  • Side Rooms: Motor Side: 150mm  / Non-Motor Side: 100mm
  • Projection: 750mm
External Work by Others
  • Power supply provision, if required
  • Structurally sound wall/mounting points to support the roller grille, designed & approved a certified engineer
  • Adequate headroom, side room, and projection to ensure successful operation
