Our Atlas 12mm roller grille is a sleek and reliable architectural solution for buildings. With its durable construction and precise design, it adds a touch of sophistication to any structure. The 12mm pattern allows for adequate airflow while effectively safeguarding the building’s interior. Easy to install and visually appealing, our 12mm grille combines style and functionality seamlessly.

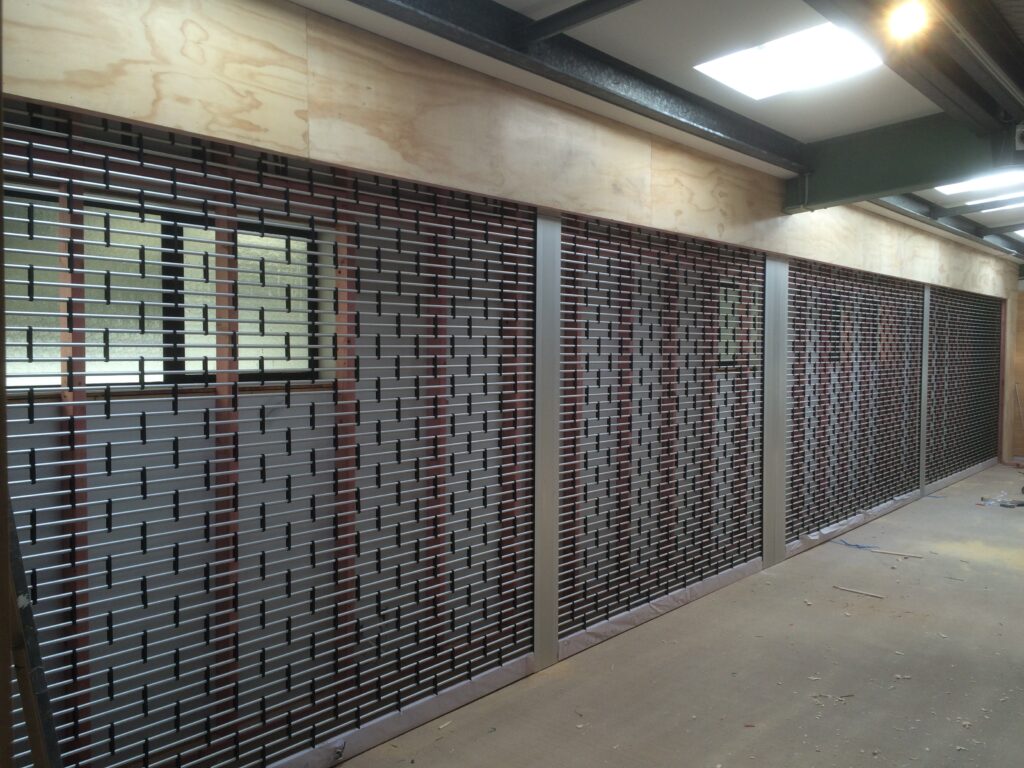

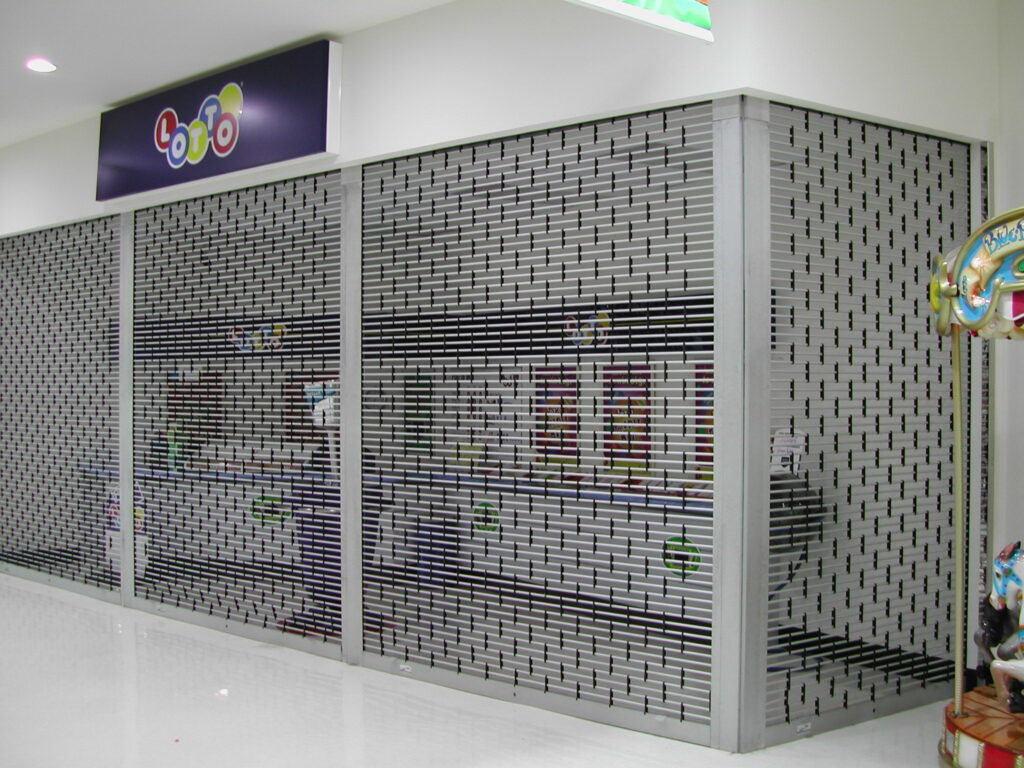

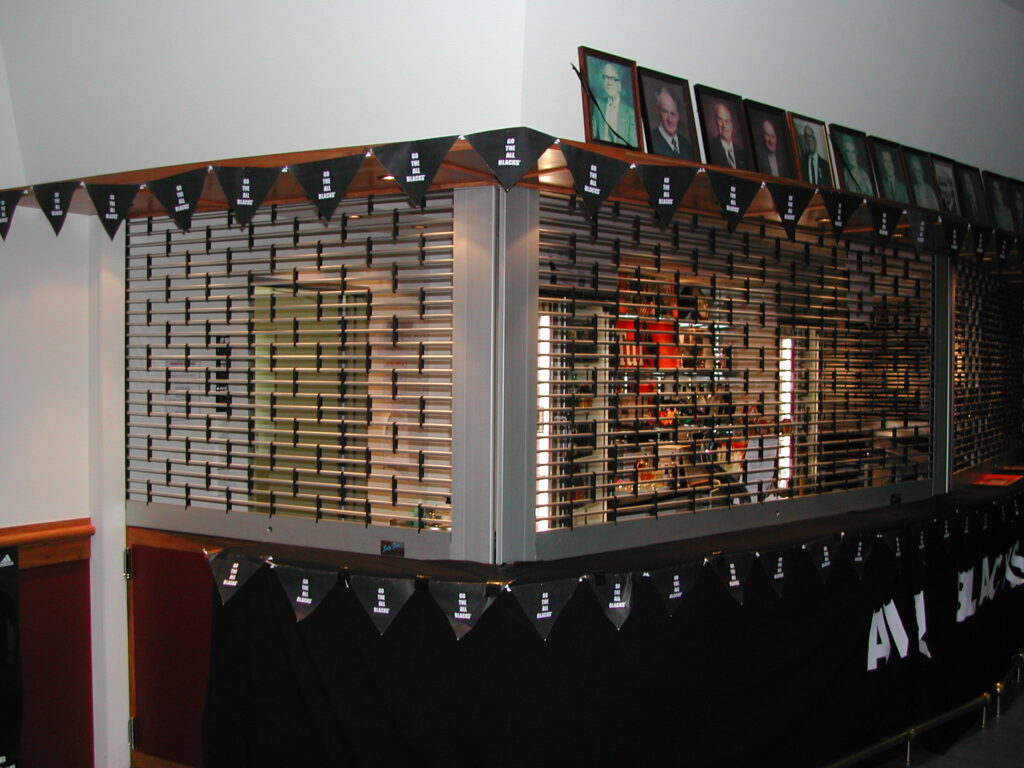

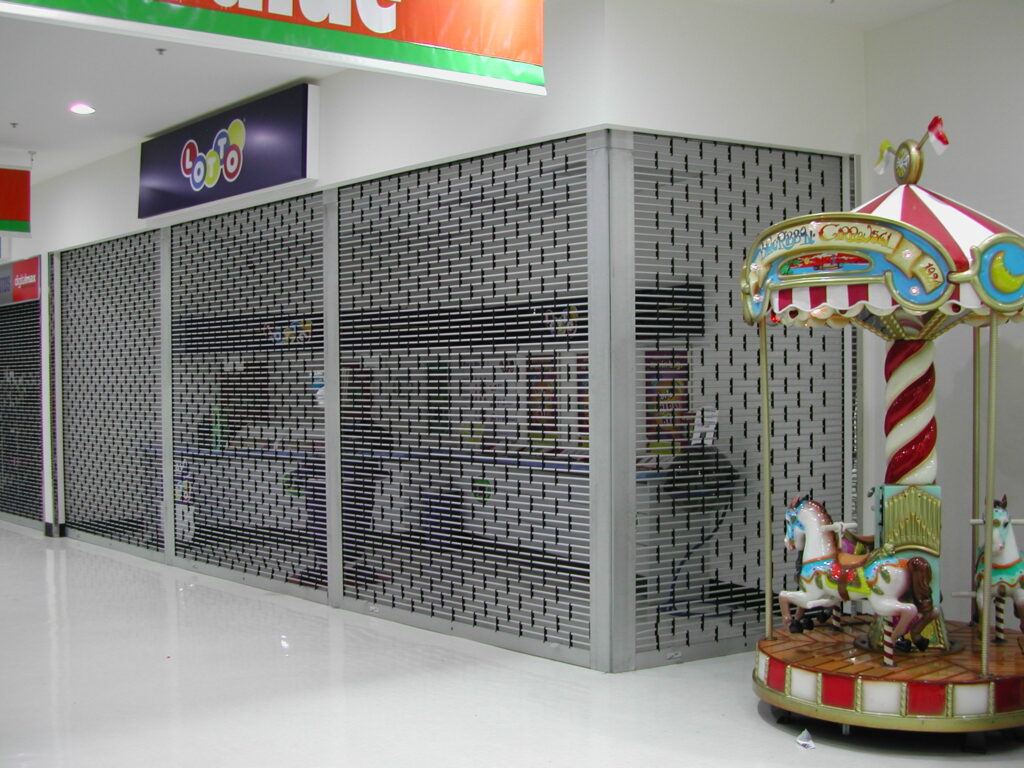

ATLAS 12mm ROLLER GRILLE
Technical Specifications
MAXIMUM WIDTH: 3500mm (Manual) | 5000mm (Motorised)
MAXIMUM HEIGHT: 3000mm (Manual) | 3500mm (Motorised)
APPROX. WEIGHT PER SQM: 15 kgs. per sqm
TUBE DIAMETER: 12.7mm
TUBE SPACING: 32mm
BARREL TYPES: 150mm/200mm spiral
BRACKETS: 3mm (Manual) | 6mm (Motorised)
SIDE GUIDES: 50mm deep x 30mm wide (face fixed or heal fixed)
DOOR FINISH: Standard Satin Silver Anodised / Dulux Duralloy Powder Coating
Product Specification Sheet
Product warranty—12 months (Materials and Workmanship)
Scotty Doors Ltd has a continuing programme of product development and reserves the right to alter specifications at any time without notice.
Door Operation
- Manual spring-balanced operation
- Motorised operation via a single-phase motor / controllers / limit switches, with options for external key switches, remote controls, and UPS battery backup units
Locking (for Manual Operation)
- Dead Lock (keyed both sides)
Power Requirements (for Motorised Operation)
- Single-phase outlet (10amp), located within 1 metre of the motor—plug and go setup
Manual spring-balanced
- Head Room: 400mm
- Side Room (both sides): 120mm
- Projection: 400mm
Motorised
- Head Room: 550mm
- Side Rooms: Motor Side: 150mm / Non-Motor Side: 100mm
- Projection: 750mm
External Work by Others
- Power supply provision, if required
- Structurally sound wall/mounting points to support the roller grille, designed & approved a certified engineer
- Adequate headroom, side room, and projection to ensure successful operation
