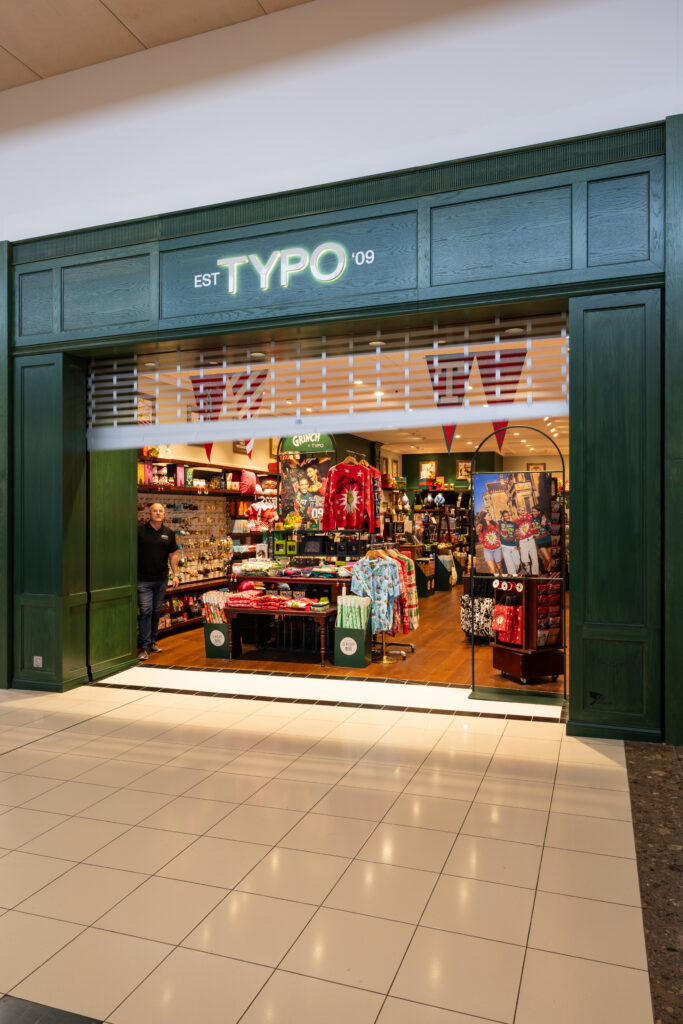

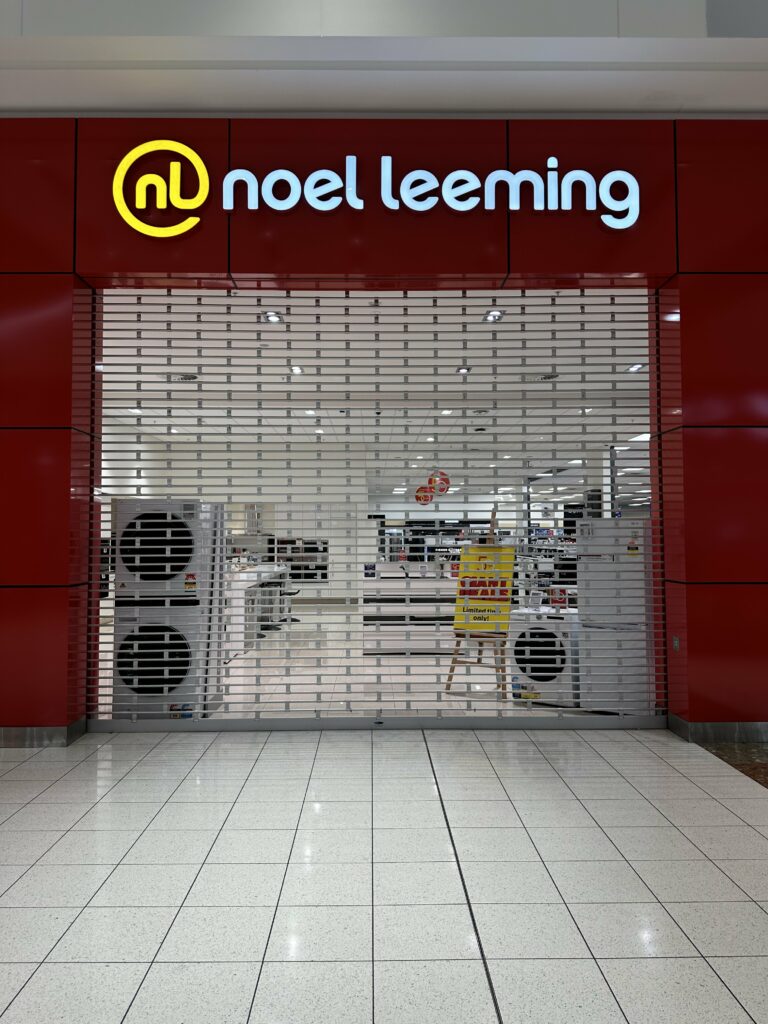

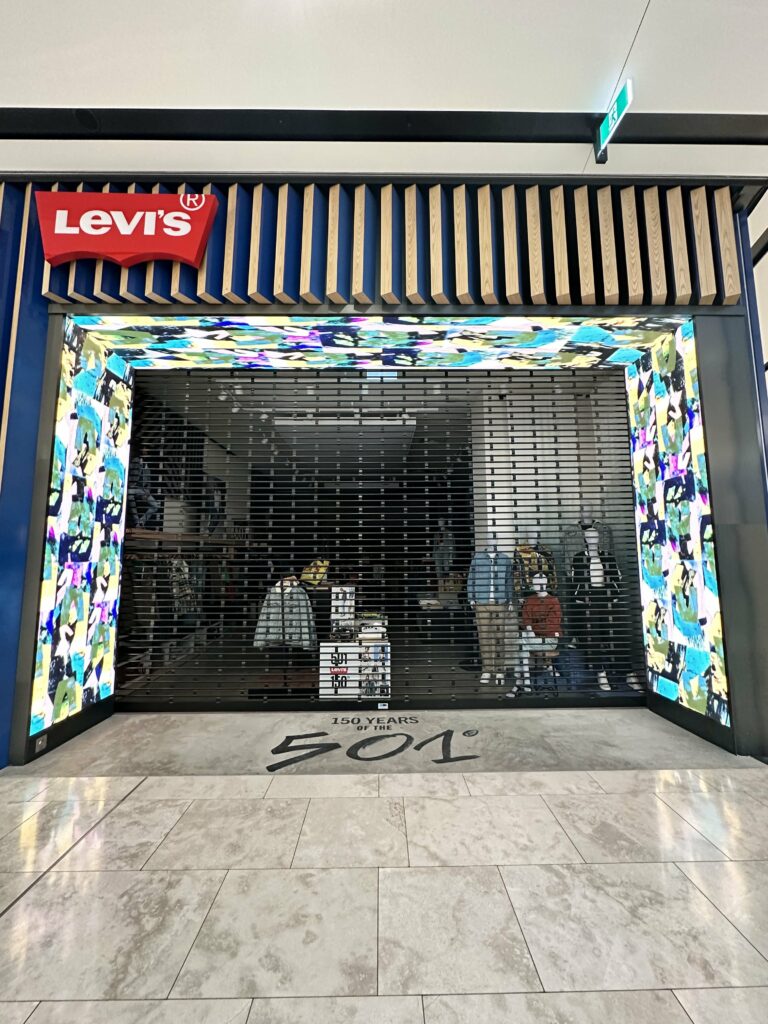

A heavy-duty roller grille designed for shopping centres, supermarkets, carparks, and street frontage stores. It is a high-quality, durable and visually appealing architectural feature. It is designed to provide a sleek and modern look while offering functional benefits such as ventilation and protection.
ECLIPSE 19mm ALUMINIUM ROLLER GRILLE
Technical Specifications
MAXIMUM WIDTH: 4000mm (Manual) | 10000mm (Motorised)
MAXIMUM HEIGHT: 3000mm (Manual) | 5500mm (Motorised)
APPROX. WEIGHT PER SQM: 16 kgs. per sqm
TUBE DIAMETER: 19mm
TUBE SPACING: 50mm
BARREL TYPES: 200mm spiral / 150mm steel
BRACKETS: 3mm (Manual) | 6mm (Motorised)
SIDE GUIDES: 50mm/65mm deep x 50mm wide (face fixed or heal fixed)
WIND LOCKS/TORSION BARS: Yes
DOOR FINISH: Standard Satin Silver Anodised / Dulux Duralloy Powder Coating
Product Specification Sheet
Product warranty—12 months (Materials and Workmanship)
Scotty Doors Ltd has a continuing programme of product development and reserves the right to alter specifications at any time without notice.
Door Operation
- Horizontal 19mm aluminium tubes spaced 50mm apart by high tensile aluminium joining links to form a strong brickwork pattern.
- Nylon endcaps reduce friction inside the door guides
Locking (for Manual Operation)
- Extruded heavy duty aluminium captive guide channel 50mm wide x 50mm deep, fixed conventionally behind door jambs or recessed into the wall.
- Flared at the top for smooth entry of screen into guides.
- The guide profile incorporates an extruded nylon and mohair strips extending the life of the door and making for quiet operation.
Power Requirements (for Motorised Operation)
- Removable mullions are used to separate multiple doors in cases of very wide or angled openings when full access is required.
- The door tracks being removable leaving opening unobstructed.
Manual spring-balanced
- A bottom rail is attached to the bottom of the door screen and is manufactured from extruded aluminium RHS.
- Manual doors are fitted with a 2 way doublesided deadlock.
Motorised (Single Phase)
- 150mm diameter door drum for minimal deflection of door screen across opening.
- Torsion springs calculated to balance screen weight for lightweight operation.
- Axle fitted with sealed roller bearings for high cycle operation.
Motorised (Three Phase)
- Satin Silver Anodised Aluminium.
- Powder coating of a wide range of colours available as an optional extra.
External Work by Others
- Satin Silver Anodised Aluminium.
- Powder coating of a wide range of colours available as an optional extra.
