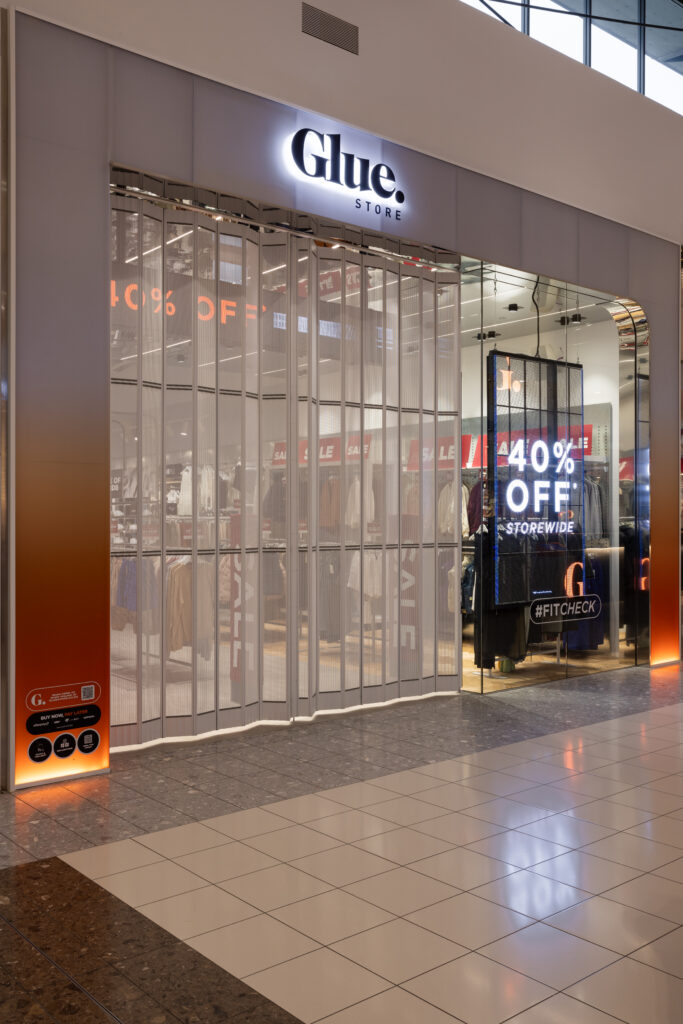

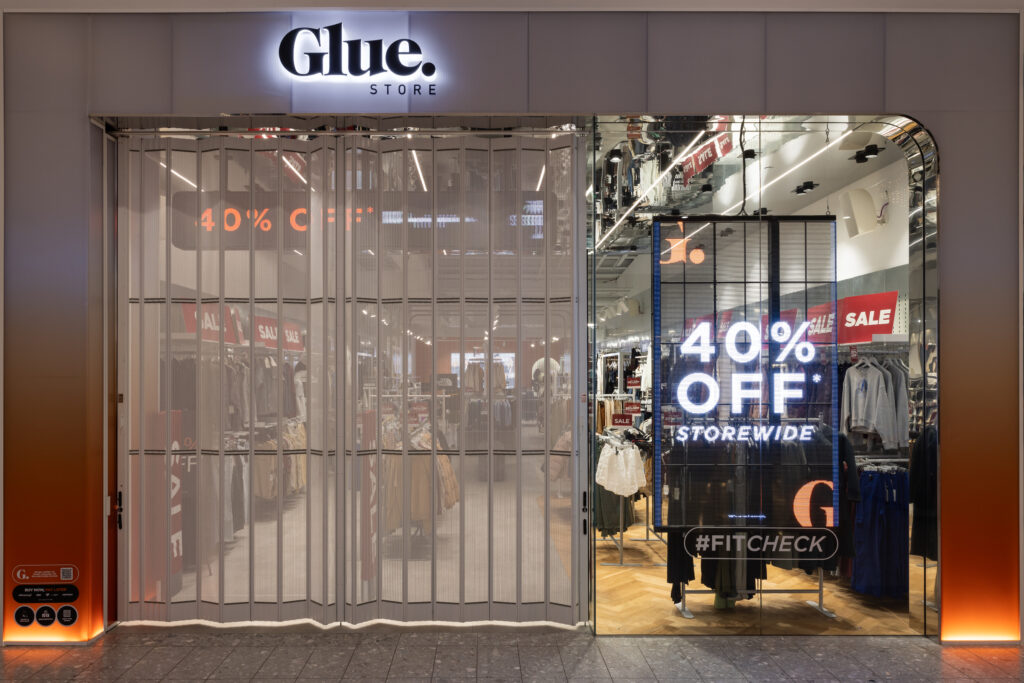

The Momentum Folding Closure is a versatile solution for internal and external applications such as shopfronts, cafes, reception areas, and bars. It features 2mm perforated aluminium panels, eliminating the need for complicated bulkheads and motors. With no headroom requirement and the ability to span large openings without heavy mullions, it offers both practicality and style.
MOMENTUM FOLDING CLOSURE
Technical Specifications
MAXIMUM WIDTH: Unlimited
MAXIMUM HEIGHT: 4200mm
APPROX. WEIGHT PER SQM: 12 kgs. per sqm
PANEL TYPE: Perforated aluminium
PANEL WIDTH: 205mm (255mm hinge to hinge)
PANEL THICKNESS: 2mm
LOCKING POSTS: 70mm deep x 35mm wide
CEILING TRACKS: 36mm deep x 46mm wide (36mm allowed to be recessed)
STANDARD CURVES: 45° and 90° | 230mm radius (special curves upon request)
DOOR FINISH: Standard Satin Silver Anodised / Dulux Duralloy Powder Coating
Product Specification Sheet
Product warranty—12 months (Materials and Workmanship)
Scotty Doors Ltd has a continuing programme of product development and reserves the right to alter specifications at any time without notice.
Locking Posts
- Main locking posts have a top & bottom mechanically retractable locking system
- Intermediate posts have bottom-locking pins
- Bi-parting posts are available with latch-locking systems for easy egress where required
Locking (Euro Cylinders)
- Snib Lock (with thumb-turn)
- Dead Lock (keyed both sides)
External Work by Others
- Structurally sound timber structure (throughout the ceiling track line) to support the folding closure, designed & approved by a certified engineer
- Adequate room for the door within the pocket, if required (inquire with Scotty Doors)
