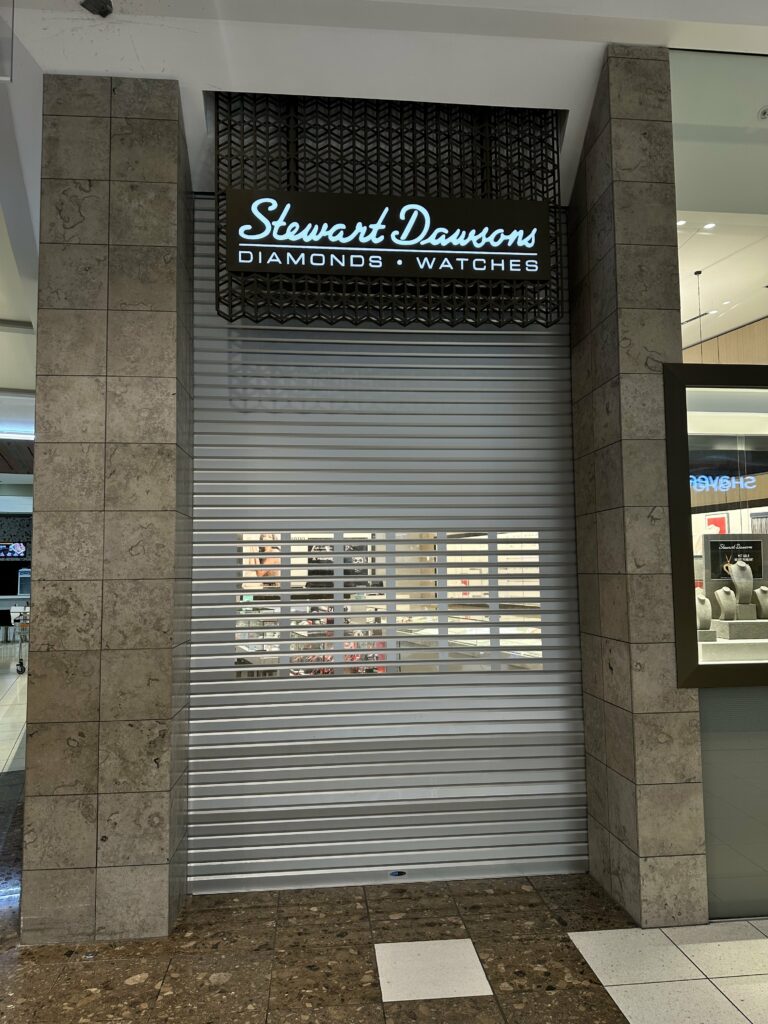

A strong and aesthetically pleasing all-purpose aluminium roller shutter. It is used for a wide range of applications including serveries, kiosks, and shopfronts, wherein a solid, strong, and secure door with certain amounts of visibility is of paramount importance.
SENTINEL ALUMINIUM VISION ROLLER SHUTTER
Technical Specifications
MAXIMUM WIDTH: 3500mm (Manual) | 5000mm (Motorised)
MAXIMUM HEIGHT: 3000mm (Manual) | 4000mm (Motorised)
APPROX. WEIGHT PER SQM: 15 kgs. per sqm
SLAT HEIGHT: 65mm (for vision and/or ventilation)
SLAT THICKNESS: 1.2mm
BARREL TYPES: 150mm/200mm spiral
BRACKETS: 3mm (Manual) | 6mm (Motorised)
SIDE GUIDES: 50mm deep x 30mm wide (face fixed or heal fixed)
DOOR FINISH: Standard Satin Silver Anodised / Dulux Duralloy Powder Coating
Product Specification Sheet
Product warranty—12 months (Materials and Workmanship)
Scotty Doors Ltd has a continuing programme of product development and reserves the right to alter specifications at any time without notice.
Door Operation
- Manual spring-balanced operation
- Motorised operation (low cycle applications only – not available in high cycle applications) via a single-phase motor / controllers / limit switches, with options for external key switches, remote controls, and UPS battery backup units
Locking (for Manual Operation)
- Snib Lock (with thumb-turn)
- Dead Lock (keyed both sides)
Power Requirements (for Motorised Operation)
- Single-phase outlet (10amp), located within 1 metre of the motor—plug and go setup
Manual spring-balanced
- Head Room: 400mm
- Side Room (both sides): 120mm
- Projection: 400mm
Motorised
- Head Room: 550mm
- Side Rooms: Motor Side: 150mm / Non-Motor Side: 100mm
- Projection: 750mm
External Work by Others
- Power supply provision, if required
- Structurally sound wall/mounting points to support the roller grille, designed & approved a certified engineer
- Adequate headroom, side room, and projection to ensure successful operation
